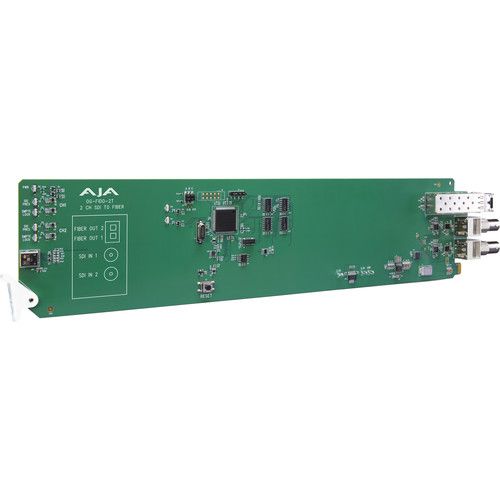

AJA 2-Channel 3G-SDI To Multi-Mode LC Fiber Transmitter With Dashboard Support

OG-FiDO-2T-MM Overview

The AJA OG-FiDO-2T-MM offers remarkable flexibility and cost efficiency for 3G-SDI Fiber conversion, enabling cable runs of up to 700 m (2296 ft) for OM4 and 300 m (984 ft) for OM3 Multi-Mode fiber optic cables. This capability is particularly useful for addressing ground loop issues.

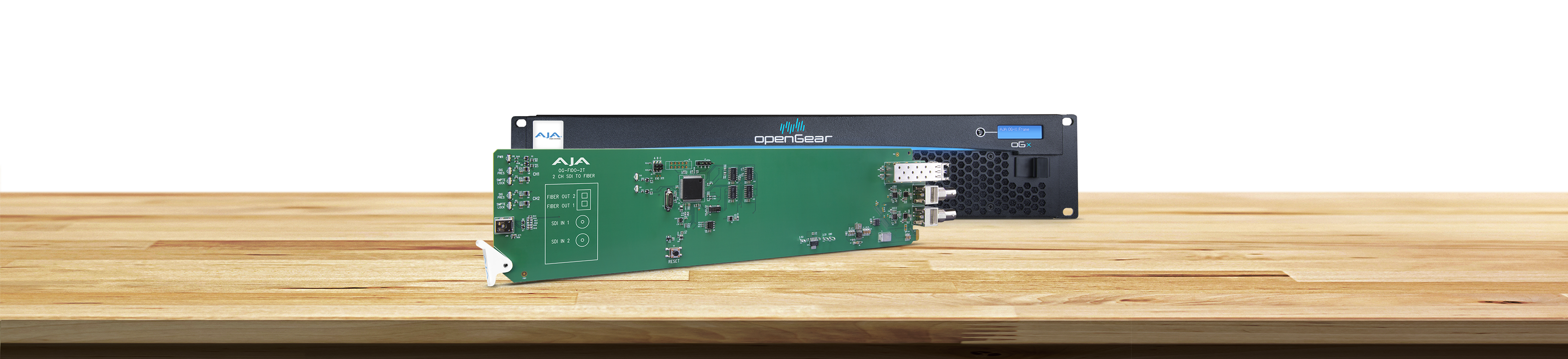

Designed for seamless integration into high-density openGear 2RU frames, including AJA�s OG-X-FR frame, this card comes equipped with DashBoard software support for Windows, macOS, and Linux. This software allows for remote control and monitoring of the openGear architecture and provides convenient, industry-standard configuration, monitoring, and control options accessible via a PC or local network.

Key Features:

• Video Formats: 150 Mbps - 3 Gbps, format agnostic
• Inputs: 2x 3G-SDI BNC
• Outputs: 2x Multi-Mode LC Fiber
• Monitor via openGear DashBoard
• Input Present and Input SMPTE Lock LEDs
• Automatic detection and reclocking
• Supported Data Rates: 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps - Auto Select
• Nominal Wavelength: 850 nm
• Power Consumption: 2.5 watts
• Hot swap capable

Compatibility:

• Compatible with OG-X-FR, OG-3-FR, and DFR-8321 openGear frames
