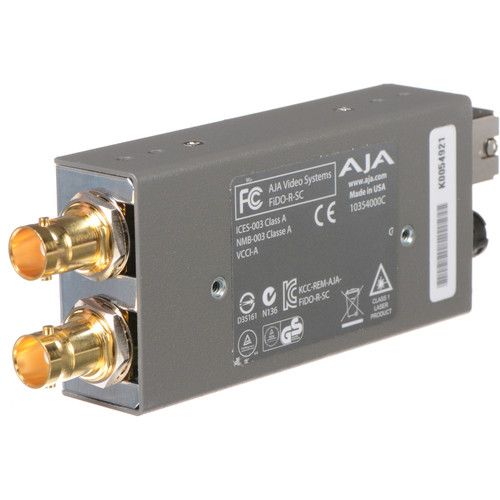

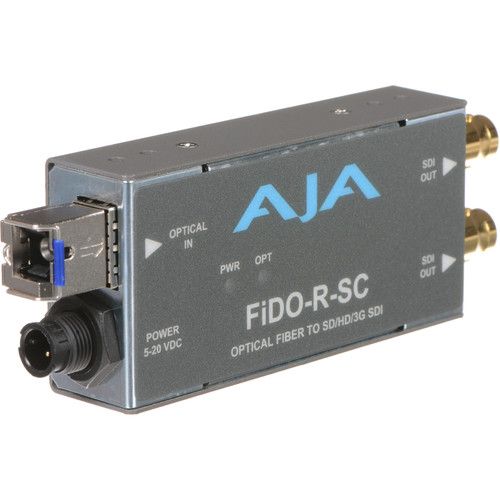

AJA R-SC Overview

Convert an SC fiber signal to two simultaneously active 3G-SDI outputs in resolutions up to 1080p. Transmit the input signal from up to six miles away at the max resolution over a single-mode fiber cable. AJA's FiDO-R-SC features one SC optical fiber input and two 3G-SDI outputs, in a compact body suitable for indoor and outdoor use. Use it with compatible devices, or pair it with a corresponding FiDO Mini Converter.

Key Features:

• Small enough to fit behind a monitor, back of a rack, or directly on a camera rig
• Autodetection of video format
• Equalized and reclocked input
• ASI compatible
• Meets all relevant SMPTE specifications
• Locking power connector
• 1.5W power consumption
• Includes 5-20V worldwide power supply with four interchangeable plug adapters
