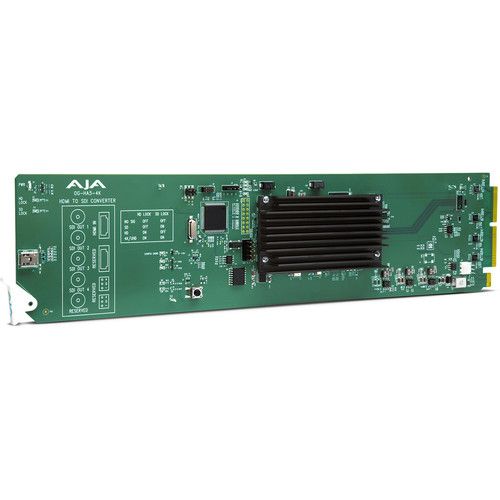

The AJA HA5-4K openGear 4K/2K/HD/SD HDMI 2.0 to 3G-SDI Converter

The AJA HA5-4K is an openGear compatible converter designed for professional workflows, offering high-quality conversion of HDMI 2.0 video to 4K/UltraHD 3G-SDI. It's ideal for use with DSLRs, mirrorless cameras, action cameras, or prosumer 4K video cameras, making it a versatile tool for various production needs. The converter also supports HDR infoframe data when used with DashBoard software.

Key Features:

• openGear compatible card
• Converts HDMI 2.0 to Quad-3G, 4K/UHD at up to 60 fps with multiple color formats
• Supports two sample interleave and square division output pixel mapping
• EDID emulation for optimal compatibility
• Displays HDR infoframe data from HDMI input (HDMI 2.0b/CTA-861-G compliant)
• Pass-through and optional override for HDR metadata VPID
• Simple frame rate conversion (FRC)
• Embedded audio support with 8-channel 24-bit capability
• Embedded audio pass-through for AC-3 (Dolby Digital Plus) and E-AC-3 audio, including Dolby Digital Plus Atmos
• Remote Ethernet configuration via Ross DashBoard software
• Hot-swappable and energy-efficient (10W power consumption)
• Rear I/O card included
• Compatible with openGear frames (OG-X-FR, OG-3-FR, DFR-8321)

HDR Support:

The HA5-4K provides High Dynamic Range (HDR) support, allowing you to display a wider range of colors, brighter whites, and deeper blacks compared to standard signals. It's equipped to handle HDR infoframe data from HDMI sources when used with DashBoard software.

HD and Audio Support:

In addition to 4K, the converter is versatile enough to handle HD-HDMI to HD-SDI conversion, automatically detecting and converting incoming HD resolution HDMI signals to single 3G-SDI output. It also ensures audio synchronization with support for up to 2 channels of embedded audio.

openGear and DashBoard Software Compatibility:

The HA5-4K follows the openGear standard, ensuring compatibility with other openGear products. DashBoard software provides quick and convenient configuration and control options on macOS, Windows, and Linux, making it easy to manage your openGear cards.
