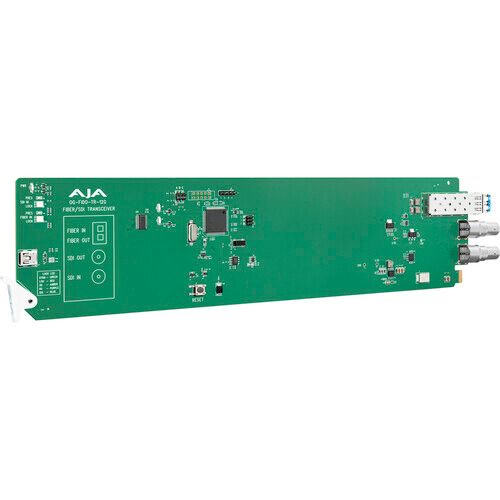

The AJA OG-FiDO-TR-12G 12G-SDI/Fiber Transceiver

The AJA OG-FiDO-TR-12G is a cutting-edge openGear compatible 12G-SDI/Fiber transceiver designed to provide seamless 12G-SDI to Fiber and Fiber to 12G-SDI conversions. This transceiver offers unmatched flexibility and cost-efficiency for 12G-SDI to Fiber conversion, allowing for extended cable runs of up to 10 km (32,808 ft) for single-mode fiber. It is fully compatible with openGear 2RU frames, including AJA's OG-X-FR frame, and offers industry-standard DashBoard software support for remote control and monitoring on Windows, macOS, and Linux platforms.

Key Features:

• Supports video formats from 270 Mbps to 12 Gbps, format agnostic
• Inputs: 1x 12G-SDI BNC; 1x Single-Mode LC Fiber Connector
• Outputs: 1x 12G-SDI BNC; 1x Single-Mode LC Fiber Connector
• Monitor via openGear DashBoard
• Support for HDR (High Dynamic Range) video
• Input Present and Input SMPTE Lock LEDs
• Automatic detection and reclocking
• Nominal Wavelength; Tx: 1310 nm (typ), Rx: 1260-1620 nm
• Power: 3 watts Max
• Hot-swappable
• Remote Ethernet Monitoring through Ross DashBoard software
• Appropriate Fiber SFP included
• Rear I/O card included
• Compatible with OG-X-FR, OG-3-FR, and DFR-8321 openGear frames

The AJA OG-FiDO-TR-12G is a versatile and reliable solution for handling 12G-SDI and Fiber conversions, making it ideal for a wide range of professional video applications.
