OWC Express 4M2 4-Slot M.2 NVMe SSD Enclosure with SoftRAID XT

OWC Express 4M2 Overview

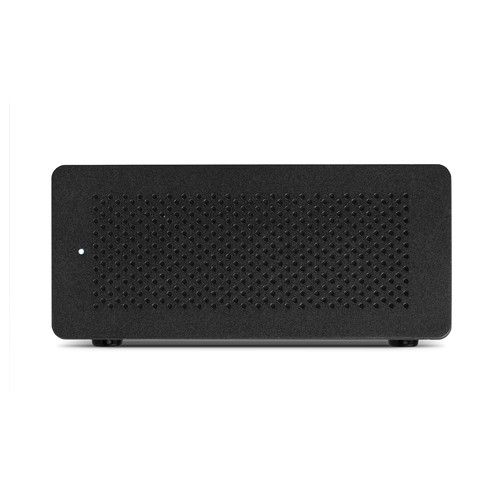

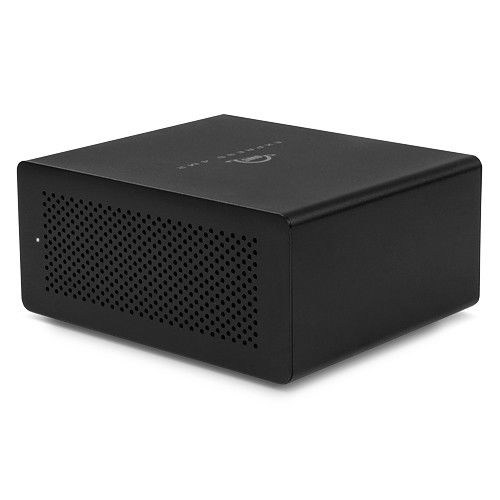

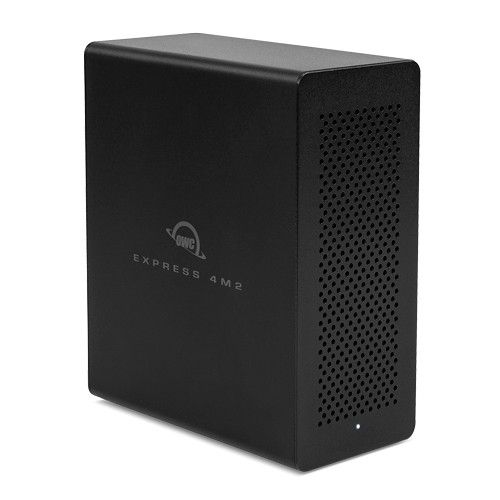

The Express 4M2 4-Slot M.2 NVMe SSD Enclosure from OWC / Other World Computing is built to securely house up to four separately sold M.2 2280 solid-state drives. Designed with a durable aluminum casing, it lets you safely store and carry your music, photos, and data wherever you go. Featuring two Thunderbolt 3 ports and a DisplayPort output, this enclosure allows seamless device connectivity and supports external displays with resolutions up to 4K at 60 Hz.

The Express 4M2 includes SoftRAID XT, which enables support for RAID 0, 1, 10, 4, 5, 6, and JBOD configurations. Also included are a Thunderbolt 3 cable, power adapter, and charging cable. This enclosure works with both Windows and macOS systems. It’s been tested with 8TB drives and supports up to 32TB in total storage capacity. Note: Drives are sold separately.

Note

For the best experience and full compatibility, make sure your system is running macOS 13.5 or later.

NVMe SSD

Non-Volatile Memory Express (NVMe) offers an efficient communication interface, taking full advantage of SSD technology and high-speed PCIe buses. With four NVMe SSD slots, this enclosure supports multiple enclosures, advanced drive monitoring, e-notifications, and firmware updates.

SoftRAID Compatible

Built-in SoftRAID delivers strong performance and protects your data by detecting issues early. Advanced tools quietly monitor and keep your RAID system running reliably.

RAID and Storage Spaces

SoftRAID XT gives you the flexibility to configure the Express 4M2 for speed or redundancy. Choose from various RAID modes—RAID 0, 1, 10, 4, 5, 6—or use JBOD for independent drive setups.

DisplayPort

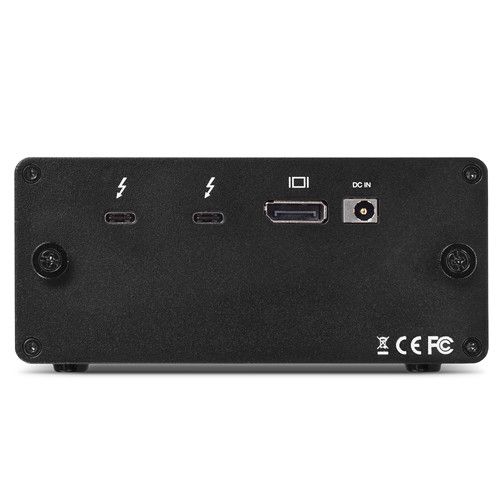

Easily connect a display with the rear-mounted DisplayPort, extending your screen without the need for extra adapters.

Thunderbolt 3

Fully compatible with Thunderbolt 3, the Express 4M2 includes a certified Thunderbolt 3 cable and supports both Mac and Windows. It also offers backward compatibility with Thunderbolt and Thunderbolt 2 devices.

Multi-Drive

With SoftRAID, this enclosure supports RAID across multiple units. Add more Express 4M2 drives to expand your storage pool on macOS or Windows using Storage Spaces. Customize and reconfigure your setup however you need.

Windows Compatible

The Express 4M2 works seamlessly with Windows, supporting Storage Spaces. Combine the four M.2 SSDs or add additional enclosures to expand storage as needed, with flexible configuration options.

Compact Design

Portable and small, the enclosure is ideal for mobile workflows without sacrificing performance.

Compatibility

iMac Pro 27" (Late 2017)
Model ID: iMacPro1,1 — 2.3 GHz, 2.5 GHz, 3.0 GHz, 3.2 GHz

iMac Retina 5K 27" (Mid 2017)
Model ID: iMac18,3 — 3.4 GHz, 3.5 GHz, 3.8 GHz, 4.2 GHz

iMac Retina 4K 21.5" (Mid 2017)
Model ID: iMac18,2 — 3.0 GHz, 3.4 GHz, 3.6 GHz

iMac 21.5" (Mid 2017)
Model ID: iMac18,1 — 2.3 GHz

MacBook Pro with Touch Bar 15" (Mid 2018)
Model ID: MacBookPro15,1 — 2.2 GHz, 2.6 GHz, 2.9 GHz

MacBook Pro with Touch Bar 13" (Mid 2018)
Model ID: MacBookPro15,2 — 2.3 GHz, 2.7 GHz

MacBook Pro with Touch Bar 15" (Mid 2017)
Model ID: MacBookPro14,3 — 2.8 GHz, 2.9 GHz, 3.1 GHz

MacBook Pro with Touch Bar 13" (Mid 2017)
Model ID: MacBookPro14,2 — 3.1 GHz, 3.3 GHz, 3.5 GHz

MacBook Pro Retina 13" (Mid 2017)
Model ID: MacBookPro14,1 — 2.3 GHz, 2.5 GHz

MacBook Pro with Touch Bar 15" (Late 2016)
Model ID: MacBookPro13,3 — 2.6 GHz, 2.7 GHz, 2.9 GHz

MacBook Pro with Touch Bar 13" (Late 2016)
Model ID: MacBookPro13,2 — 2.9 GHz, 3.1 GHz, 3.3 GHz

MacBook Pro Retina 13" (Late 2016)
Model ID: MacBookPro13,1 — 2.0 GHz, 2.4 GHz
